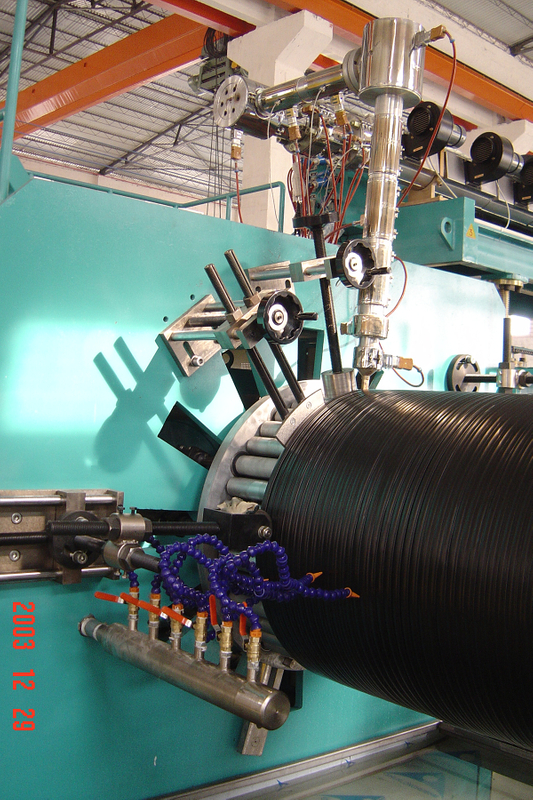

HDPE Hollow Wall Spiral Winding Pipe Production Line

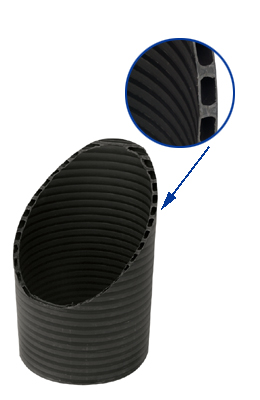

Application: to produce the drainage or sewerage pipe from 300mm to 3000mm. Also make water tank. The machine investment is low.
Features: adopts high efficiency single screw extruder, high output, low power consumption. With high precision spiral forming unit, forming stable. The complete line controlled by PLC, easy to operate and running steady.
MODEL | Pipe Range(mm) | Extruder model | Speed of forming system (m/h) | Max. output (kg/h) | Total installed power(kw) | Overall dimension LxWxH |
HWP-800 | 200-800 | FSJ-65(50)X30 | 1-12 | 300 | 230 | 26x18x5m |
HWP-1200 | 400-1200 | FSJ-90(65)X30 | 1-6 | 500 | 310 | 27x18x5m |
HWP-2000 | 1000-2000 | FSJ-90(65)X33 | 0.5-5 | 650 | 380 | 28x19x5m |
HWP-3000 | 2000-3000 | FSJ-120(65)X30 | 0.3-3 | 800 | 390 | 48x26x6m |
HDPE Hollow Wall Spiral Winding Pipe Production Line
Application: to produce the drainage or sewerage pipe from 300mm to 3000mm. Also make water tank. The machine investment is low.
Features: adopts high efficiency single screw extruder, high output, low power consumption. With high precision spiral forming unit, forming stable. The complete line controlled by PLC, easy to operate and running steady.
MODEL | Pipe Range(mm) | Extruder model | Speed of forming system (m/h) | Max. output (kg/h) | Total installed power(kw) | Overall dimension LxWxH |
HWP-800 | 200-800 | FSJ-65(50)X30 | 1-12 | 300 | 230 | 26x18x5m |
HWP-1200 | 400-1200 | FSJ-90(65)X30 | 1-6 | 500 | 310 | 27x18x5m |
HWP-2000 | 1000-2000 | FSJ-90(65)X33 | 0.5-5 | 650 | 380 | 28x19x5m |
HWP-3000 | 2000-3000 | FSJ-120(65)X30 | 0.3-3 | 800 | 390 | 48x26x6m |
