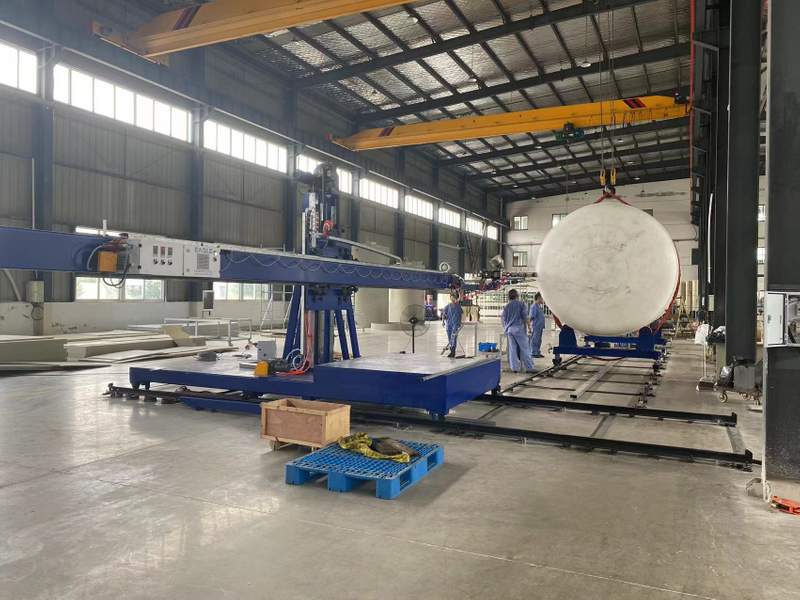

Multifunctional universal plastic tank welding machine

Multifunctional universal plastic tank welding machine

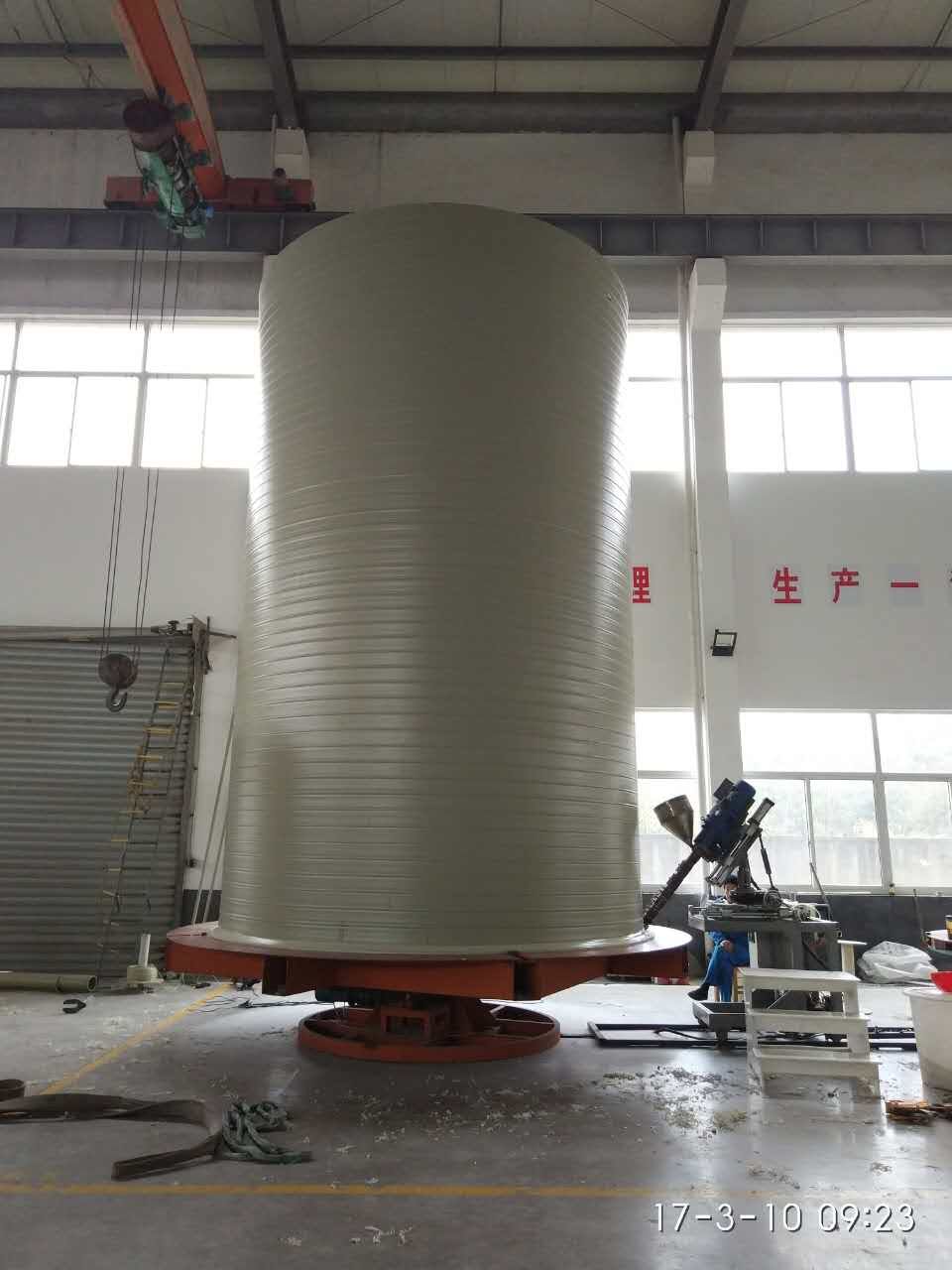

    Unique technology for large diameter plastic tank or drum bottom or cover welding

    Application: PP, HDPE, PVDF, PVC tank welding

    Welding seam smooth and uniform

     Tank diameter: DN800-DN4500mm

      Tank length: 1m to 6m

      The multi-function plastic tank welding machine is equipped extruder to use raw material to extrude the welding strip. It ensures the seam material is as same as the tank body and guarantee the welding seam quality. The welding arm can be adjusted according to the tank diameter and length. The welding machine can move to the side of the tank in order to weld the side welding seam such as cover, connection joint seam, etc. This machine can weld inner, outer and side welding seam.

     Feature of the machine:

       High automatic, unform welding seam and high quality.

       Welding seam size can be set according to the requirement of product

       Homogeneity and integrity: the welding material is as same as tank body. So the seam is as strong as the tank body.

       Smooth: it can weld the long seam continuously and automatically. It can avoid the welding joint or flash caused manual welding.

       Low cost: no labor is required during welding.

    Specification

       Extruder output: 6-12kg/h

       Rotation speed: 5-20m/min

       Tank diameter: DN800mm to DN4500mm

       Tank length: 1m to 6m
